The vibration analysis tool shows the signal spektrum measured by the sensor.
Vibrations are oscillations that may occur at different frequencies at the same time. A vibration "signal" can carry not only one frequency but different ones. This set of frequencies is called "spectrum".

The calculation is done every two seconds, and is based upon a signal sample of 0.1 seconds. The display refreshes continuously.

While moving the mouse pointer along the diagram, the cross hair shows the frequency in Hz at a certain position and calculates the corresponding rpm simultaneously. This way, vibrations can be allocated to rpm at certain rotating parts of the heli, such as main rotor, tail rotor, motor etc.




Usage Example:

My T-rex 450 has some strange vibrations after rebuilding it (crash due pilots error). This could be seen on a moving rotor disc while the heli has been running on the ground. In addition to this the tail fin was oscillating and some noise could be heared too.

The following analysis has been done with the bluetooth module. Running the heli with blades it is highly recommended not to use the usb cable to avoid accidental crashs and also have the necessary safety distance.

We start the analyzer and we'll see some peaks at 55hz - 3.276 rpm (headspeed, main head). The next is at appox. 160 hz - 9.600 rpm and one further at approx. 230 hz - 13.800 rpm (tail rotor). The maximum values are not very high but in case of the issues described above we have to take a look on that.

As first step it is always recommended to do a test run on the bench without main and tail blades. During this we can see things like uneven shafts or broken bearings. As shown here we got lower peaks now but they are still there. This means that the peaks have increased under load but the basic reasons are not the now unmounted blades. The heli needs some further analysis now.

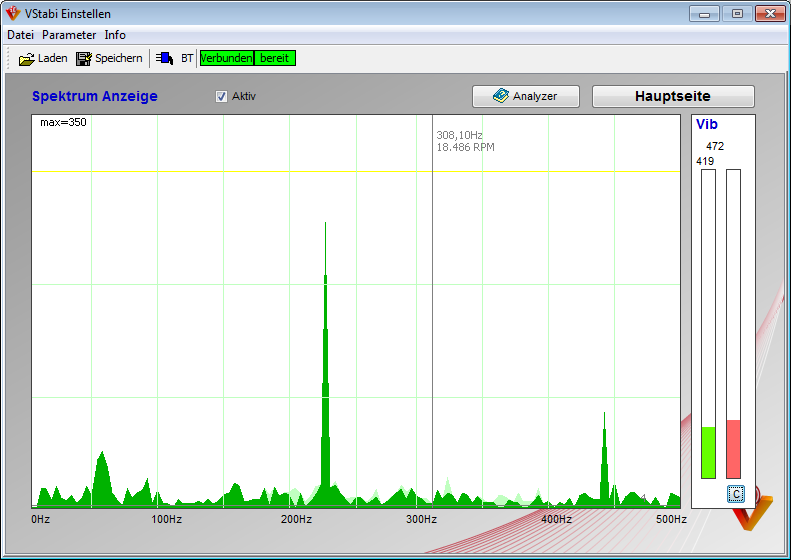

I am concentrating on the first peak (main rotor) now. I have unmounted the complete main rotor and the peak has gone away. So the shaft or one way bearing and main gear wheel seems not to cause this peak. Disassembling the complete main head i found a bent spindle shaft and replaced it. Now the spectrum looks like this:

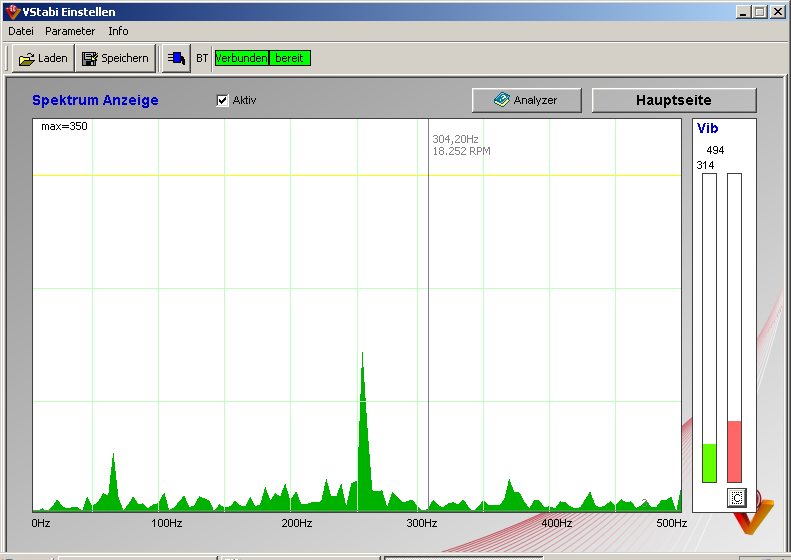

At the next step i took a look on the tail. Here we have 2 possibilities, either the tail hub including the blade grips or the tail shaft itself seems to be the problem. I had a new tail shaft handy and tried this first, it tooks the peak down a lot now.

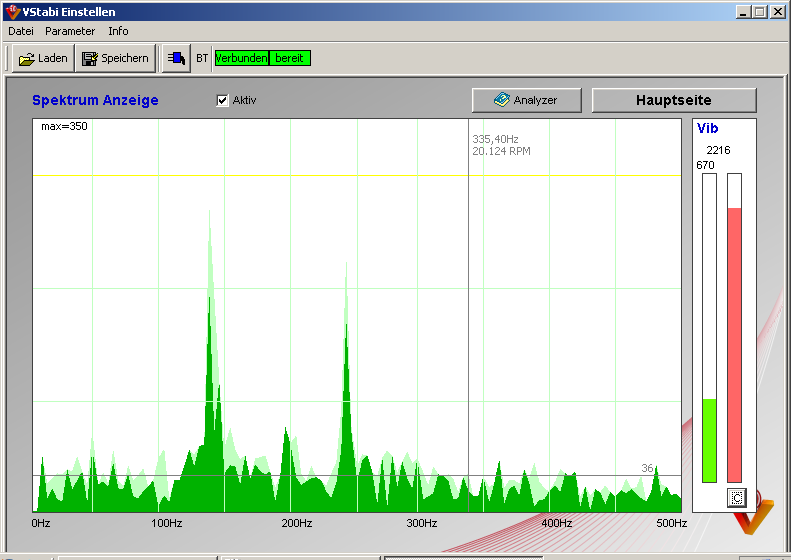

After mounting the tail blades we have more load in the system, the motor has to work more and causes also some vibrations. This can be seen as "grass" at the bottom here because the frequency is out of the sensors measurement resolution. Now i know that the motor might be a possible reason for vibration issues. As i had seen no further issues like moving swash servo horns on the bench here i wouldn't go on to balance/change the motor and keep it as it is.

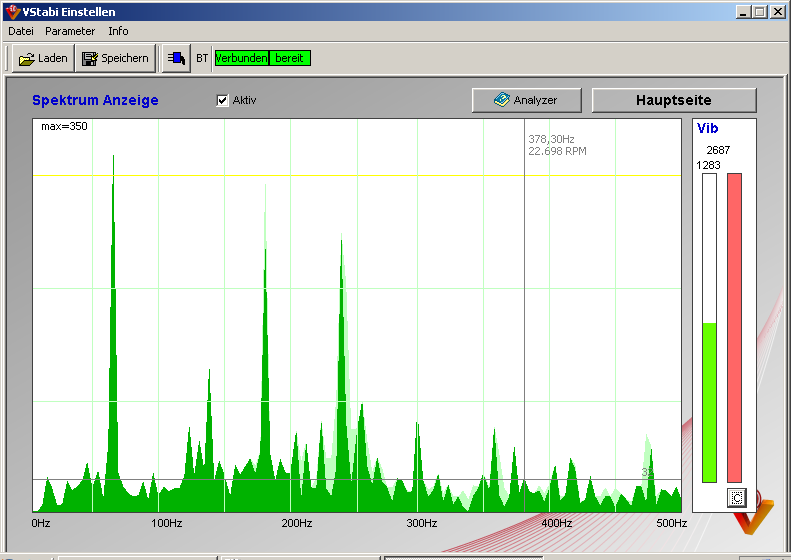

After the main blades have been mounted i got a high peak at 3200 rpm. So it is needed to balance them with a piece of self adhesive tape. I needed about 3cm on one blade to get them balanced.

All has been done now, defective parts have been sorted out and replaced, the system is balanced as best as we can now. Some vibrations will be left of course but not as much as they disturb the control loops. We got hughe improvements here and the heli flies much better now.
